Hidden little gem that can save your Power BI life!

Power BI is full of hidden gems! This one can literally make you a real Power BI hero out of nowhere!

Sep 06, 2024

Sometimes, things are happening for a reason.

A few weeks ago, I attended a session about Power BI performance tuning at a data conference in Germany. It was a great session and one of the tips shared was related to the IsAvailableInMDX property in Tabular models. I remember hearing about it sometimes somewhere, but honestly rarely had an opportunity to apply it in a real-world scenario. But, as I said at the very beginning, things are happening for the reason…

Last week, I was working on optimizing the Power BI solution for a client. I made sure to pull all the aces up my sleeve to make the data model more efficient – removed unnecessary data, reduced the cardinality wherever was feasible, adjusted column data types, and applied some additional recommended practices…And, then, I’ve remembered a tip from the session and decided to give it a shot and see what happens if I disable the IsAvailableInMDX property…

But let’s start by explaining what the IsAvailableInMDX property is…

Thanks for reading Head First Data! This post is public so feel free to share it.

If you go to Microsoft Docs, you’ll probably be disappointed, as there is an obscure definition of the property. However, Chris Webb wrote a great blog post (one of many) a while ago, explaining the property and the way it works. In case you don’t want to read Chris’s original post for whatever reason (even though I encourage you to read it), in a nutshell, the IsAvailableInMDX property value (TRUE or FALSE) determines if the attribute hierarchies on the columns will be built or not.

Now, the fair question would be:

What is the attribute hierarchy?

[Date].[Fiscal Year].&[2022]
,[Product].[Category].[Bikes]
,[Sales Territory].[Sales Territory Group].&[Europe]
,[Measures].[Internet Sales Amount]

Hands up, all of you that recognized good old MDX! The language used for querying SSAS Multidimensional models…As you may (or may not) see, each column belongs to a certain hierarchy: Fiscal Year belongs to the Date hierarchy, Bikes are part of the Category hierarchy, where the parent level is Product…Measures are also part of the hierarchy! That’s important to understand, as you’ll find out soon. These are all User-defined hierarchies!

However, SSAS Multidimensional also creates Attribute hierarchies, where each regular attribute becomes part of the 2-level hierarchy, with “All” as a top level:

The key characteristic of the attribute hierarchy is that the column that is part of the hierarchy can be used both as a row and column in an MDX query. Ok, now you (hopefully) know what attribute hierarchies are, but…Hey, Nikola, we’re talking about Power BI here, the Tabular model…SSAS Multidimensional is a legacy technology, right? Well, we can argue about that, but it is obviously out of the scope of this article:)

However, it’s still a valid question:

What on Earth does MDX have in common with Power BI?!

Quiz question: which language does Excel use when connecting to the Analysis Services Tabular model (bold and italic with purpose on Tabular)? I’ll help you a little bit: it’s not DAX…

Yes, Excel generates MDX queries when connecting to AS Tabular model! And, this brings us to a key takeaway: as Excel relies on MDX, it also relies on the data structures present in the multidimensional model! This implies, unless you explicitly set the IsAvailableInMDX property to FALSE, the attribute hierarchies will be part of your data model!

Now, the next question is: why is this property not, by default, set to FALSE? Well, in many real-life cases, Excel is the tool of choice for many data analysts. They should be able to connect to the Analysis Services Tabular model behind Power BI (don’t forget, Power BI stores the data in the instance of Analysis Services Tabular), so if this property would have been disabled by default, they shouldn’t be able to perform their analysis!

What’s even more interesting, most of the Power BI developers are not aware of this property at all! And why should they? It’s not accessible from the Power BI Desktop, attribute hierarchies are not visible in the Power BI Desktop at all, while in the Power BI itself, you won’t notice any difference in the figures displayed in the visuals! So, why bother with it when everything works perfectly in Power BI, while your Excel analysts are also happy with creating their Pivot tables using the data from the Power BI dataset?

Now, we come to the point when THIS matters…To the point that helped me make astonishing improvements in the client’s Power BI solution.

I won’t waste time demonstrating the difference between Excel and Power BI when displaying the data stored in the Tabular model (again, go and read Chris Webb’s blog post where everything is explained), but rather focus on the differences in the data model performance when this property is enabled or disabled.

Data model starting point

In this article, for the demo purposes, I’ll use a Contoso sample database, the version containing 100 million records in the fact table (courtesy of SQLBI.com guys, you can download and customize different versions of the Contoso database here).

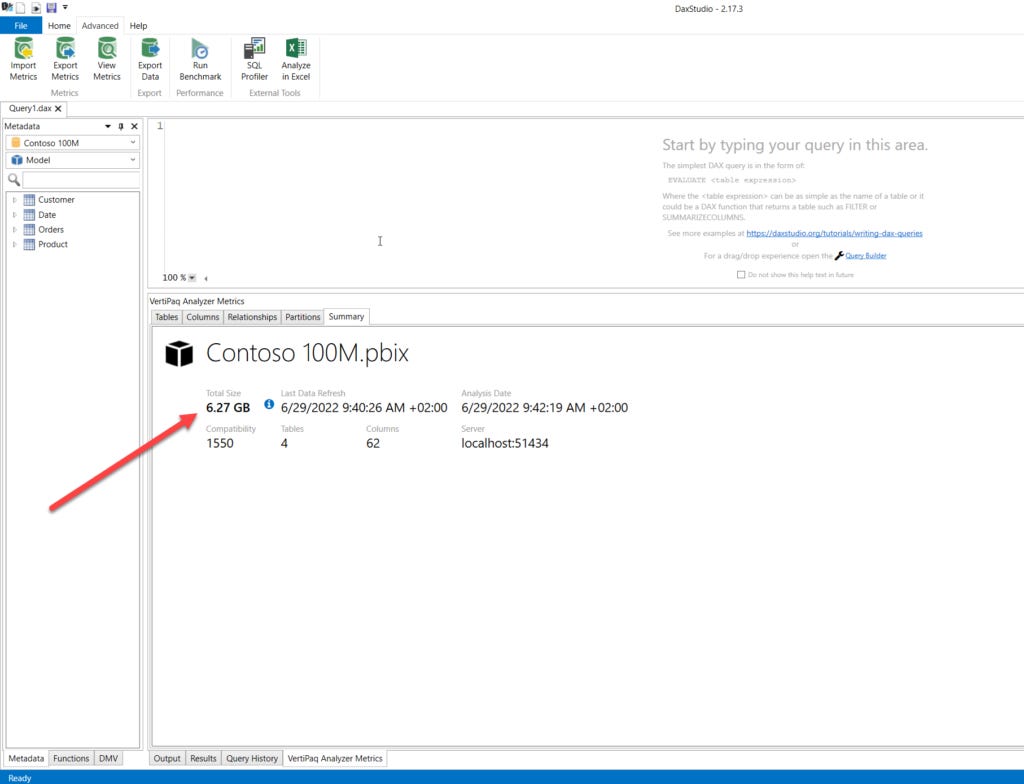

So, let’s import our data into Power BI and check the numbers behind the data model. As usual, I’ll use a VertiPaq Analyzer tool in the DAX Studio:

As you see, the total size of my dataset is almost 6.3 GBs! Now, there are two possible options if you decide to play around with the IsAvailableInMDX property:

Set the property value to FALSE for all the columns in your data model – meaning, no Excel analysis at all! So, the main question here is: Do you want to completely restrict the connection to the data model from Excel?
Set the property value to FALSE for some columns in your data model – namely, non-attribute columns, such as facts (measures) and keys. This will still enable Excel connections, but disabled columns won’t be available as a part of the hierarchy

I’ll show you the impact on the data model size and processing time for both options.

Set IsAvailableInMDX to FALSE for ALL columns

Let’s start with the holistic approach and disable attribute hierarchies for all the columns in the data model. So, we will measure two metrics: data model size and full data processing duration. Our initial benchmarks are 6.27 GBs and 143 seconds. Obviously, data process duration depends on multiple different aspects, but I’ll try to isolate this on my (quite powerful) local machine.

Of course, you can go and manually change the property value for each column, but that would take forever, especially in large models. So, here is the simple script that you can execute from the Advanced Editor window of Tabular Editor, which will set the IsAvailableInMDX property to FALSE for all the columns in the data model:

Thanks for reading Head First Data! This post is public so feel free to share it.

foreach(var column in Model.AllColumns)
    column.IsAvailableInMDX = false;

Once I save the changes back to my model, let’s refresh the dataset and check if something changed:

Oh, wow! 15% of savings just by changing the value of one “hidden” property! In terms of the data processing, time went down to 118 seconds, which is 25 seconds faster than previously!

Remark: In a real-life case, the fact table had ~500 million rows, and many more dimensions (some of them containing 2-3 million records), thus the performance improvement was even more remarkable

That’s great, but the client’s requirement was to keep Excel users happy and enable them to continue using their favorite tool.

So, let’s set the IsAvailableInMDX property to FALSE only for the facts (columns that are used for creating measures) and key columns (that should be hidden from the end-user anyway, in accordance with the recommended practices).

Two ways of handling IsAvailableInMDX property for “some” columns

Now, it’s the right moment to discuss an additional point that is useful when you want to disable only some columns for MDX queries. There are two possible ways to handle the IsAvailableInMDX property and I’ll show you both. Let’s start with a simpler one, but the one that requires a lot of manual work!

Another, more convenient and I’d dare to say recommended way to achieve exactly the same outcome, is to leverage a Best Practice Analyzer extension in Tabular Editor to do the tedious work for you! Best Practice Analyzer is an amazing tool created by Michael Kovalsky that can immensely help you to optimize your data models. In a nutshell, it scans the whole data model and based on findings, lists all the rules that were not followed. You can then decide if you want to apply recommended practices on your own, or let Best Practice Analyzer do that for you!

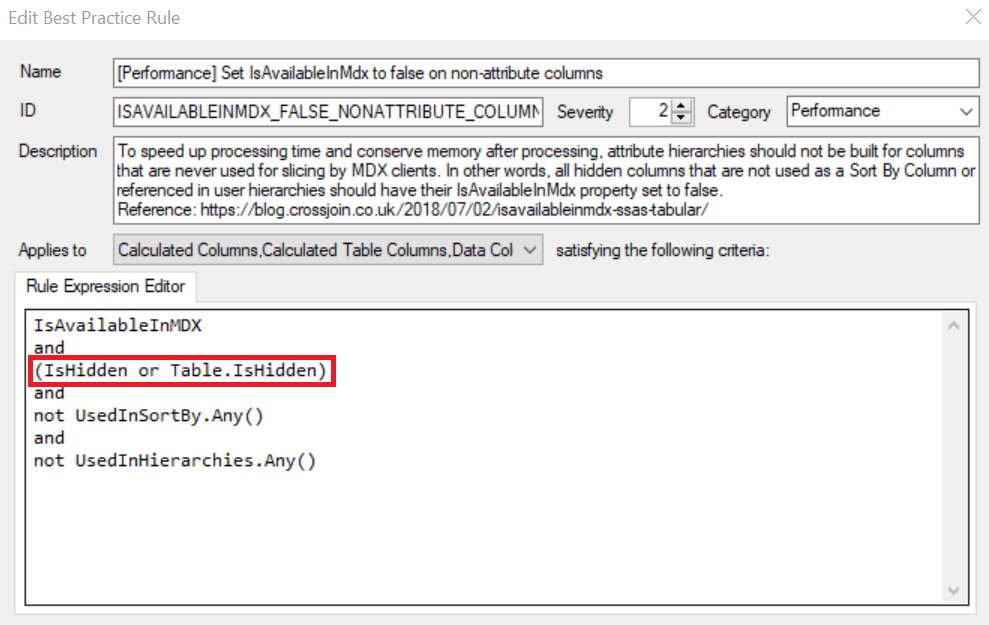

Now, there is a little catch in this specific scenario: BPA has a rule that sets the IsAvailableInMDX property to FALSE only for hidden columns or for columns whose table is hidden, as explained in this article by Michael Kovalsky:

In simple words, if you didn’t follow the recommended practice to hide non-attribute columns in the first place (fact table columns and keys), the rule for setting the IsAvailableInMDX property to FALSE wouldn’t work! That’s what Michael calls “Rule Synergy” in his article…

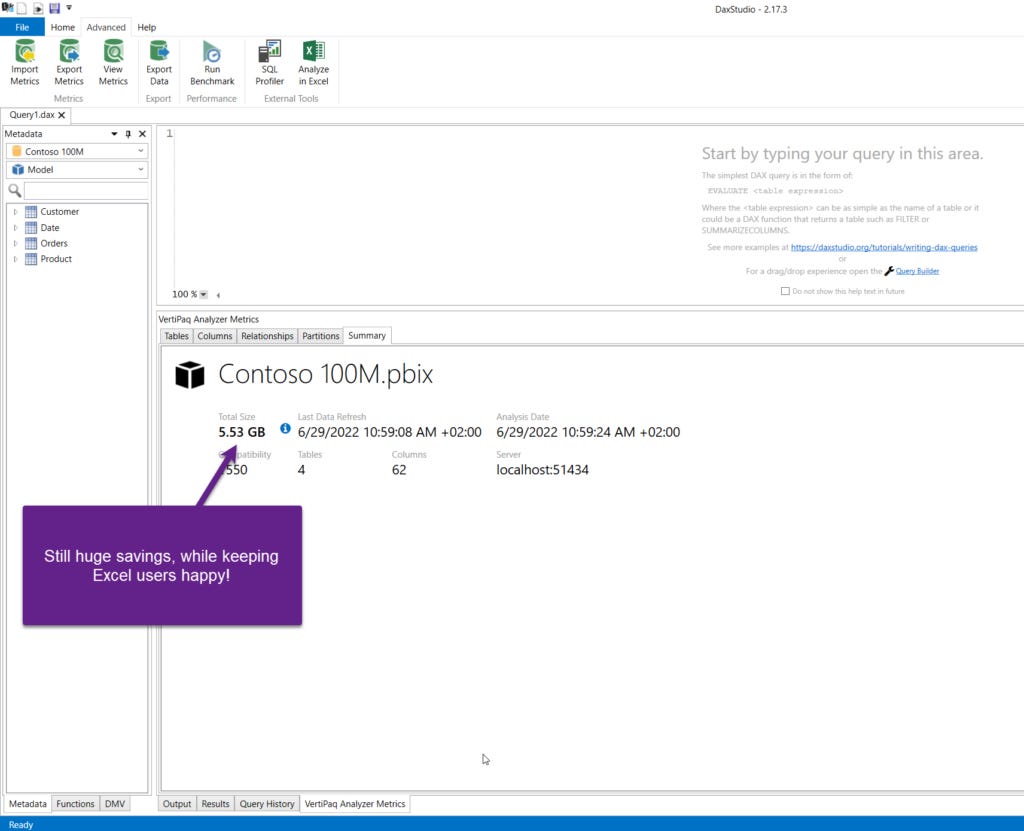

Anyway, let’s do a final check of our benchmarks with non-attribute columns disabled for MDX queries:

This change added 100 MBs to the overall data model size, but we are still 750 MBs below the starting point! And, don’t forget, in this scenario, it’s a win-win situation – we reduced the data model size, while keeping our Excel users happy! Processing time slightly increased to 124 seconds, so here is the overview after the second use case:

Word of warning

I feel obliged to warn you about the side-effects of disabling the IsAvailableInMdx property. Attribute hierarchies store some important information, such as the number of distinct values in that column, also stored in alphabetical order. Consequentially, you can also quickly pull MIN and MAX values from the column.
If you frequently use operations such as DISTINCTCOUNT, MIN, MAX, over one single column, without including filtering results by another column, the Tabular model that has the IsAvailableInMDX property enabled could perform better.

So, should you ALWAYS disable this property? As usual, it depends:)

Conclusion

Power BI (and the Tabular model) are full of hidden gems! Sometimes, these gems are really hard to find (or hard to understand their possible impact), but once you manage to do it, you can make significant improvements to your Power BI solutions.

As you’ve witnessed, by simply changing the default value of the property that is hidden deeply in the Tabular model, I was able to increase the efficiency of the Power BI solution, without sacrificing the overall users’ experience and core functionalities (namely, using Excel for querying Power BI dataset).
